CNC Router

• Place of Origin:

   China

• Type:

  Polishing and Surface Finishing Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1467350

• Place of Origin:

  China

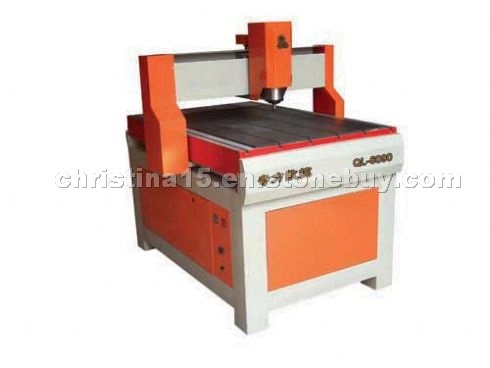

• QL-6090 CNC Advertising Machine
  Characteristics:
  1, Germany-double with ball screw nut imports Guide.
  2, the application of the breakpoint memory, guaranteed in the accident (Duandao) or the next day, and circumstances.
  3, alone with a number of workpiece machining way to preserve the original point.
  4, gantry movement, the use of non-durable long deformation, the more precise positioning accuracy.
  5, cutting power not only to elaborately carved a jagged, smooth contours clear bottom, and also a 2 cm organic ease.
  6, the machine is suitable for building models, logo industry, schools, enterprises and institutions use.

  Machine Model QL-6090
  X.Y working area 600*900mm
  Z working area 100mm
  Table 720*1150mm
  Max. Speed 4m-5.5m/min
  Max. working speed 2m-3m/min
  Max. feeding height 100mm
  Working delicacy 0.005mm
  Repositioning accuracy 0.05mm
  Command G code*.u00*.mmg*.plt
  Surroundings for software windows98/2000/xp
  Power (spindle is not included) 300w
  Working voltage AC220V/50Hz
  Spindle power 1.5kw
  Spindle rotating speed 0-24000rpm/min
  Drive motor Steper
