CNC Advertising Router

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1437334

• Place of Origin:

  China
• Characteristics:

  ? Matching European brand names ball screw, and linear guide high quality accessories.
  ? High-power, high-performance drives and motors.
  ? popular X-axis dust structure.
  ? Software compatibility strong: If renowned Type3/artcarm/castmate/proe/Corelerow / Wentai, and other CAD / CAM software.

  Applicable industry:

  Billboard industry: characters cutting, plate production, LED / neon channel, literal-hole cut, blister Lightbox mold production.

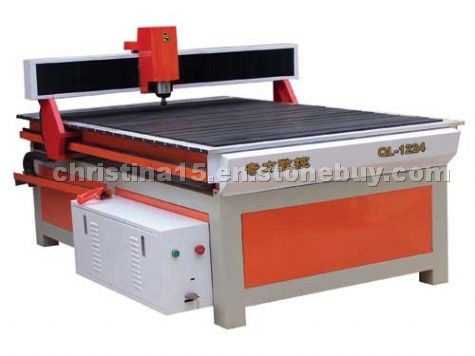

  Machine Model QL-1224
  X.Y working area 1200*2400mm
  Z working area 100mm
  Table 1300*2680mm
  Max. Speed 6m-7m/min
  Max. working speed 3m-3.5m/min
  Max. feeding height 110mm
  Working delicacy 0.005mm
  Repositioning accuracy 0.05mm
  Command G code*.u00*.mmg*.plt
  Surroundings for software windows98/2000/xp
  Power (spindle is not included) 550w
  Working voltage AC220V/50Hz
  Spindle power 1.5kw
  Spindle rotating speed 0-24000rpm/min
  Drive motor Steper
